● Height: 16.0±1mm ● Finish: Anodizing

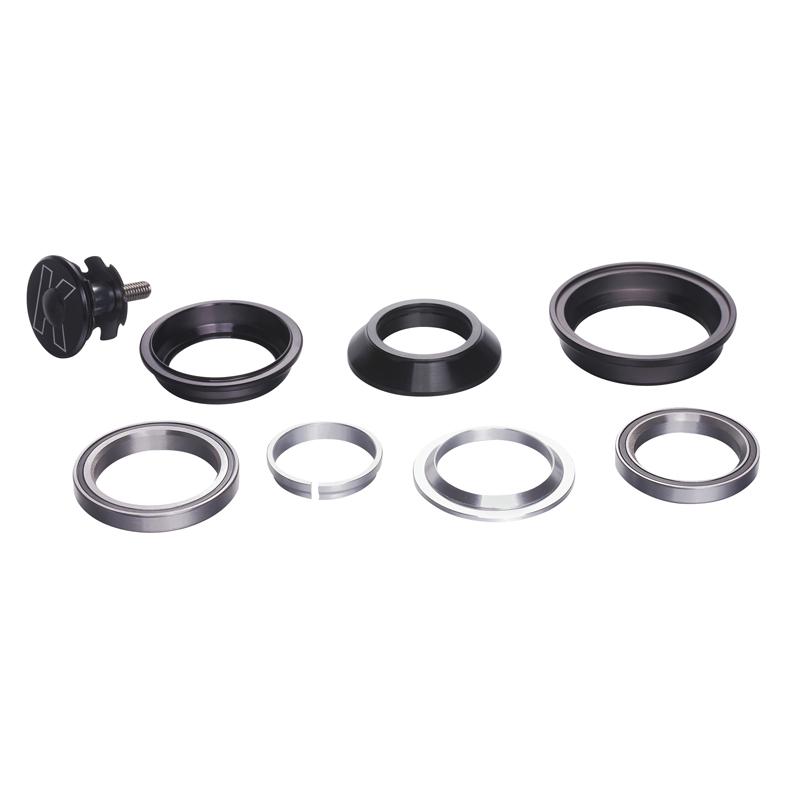

NO | PART NAME | MATERIAL | SPECIFICATION | Q'TY |
1 | Start Nut | Alloy 6061 | 1- 1/8'' | 1 |
2 | Upper Cover | Alloy 6061 | 28.6mm | 1 |
3 | Compress Ring | Alloy 6061 | 28.6mm | 1 |
4 | Bearing | G-Cr15 | 41 X 30.15 X 6.5 mm x 45° | 1 |
5 | Top Cup | Alloy 6061 | Ø44mm | 1 |
6 | Lower Cup | Alloy 6061 | Ø50.6mm | 1 |
7 | Bearing | G-Cr15 | 47 X 35 X 7mm x 45° | 1 |
8 | Lower Cone | Alloy 6061 | Ø33mm(30mm) | 1 |
