● Height: 45.0±1mm ● Finish: Anodizing

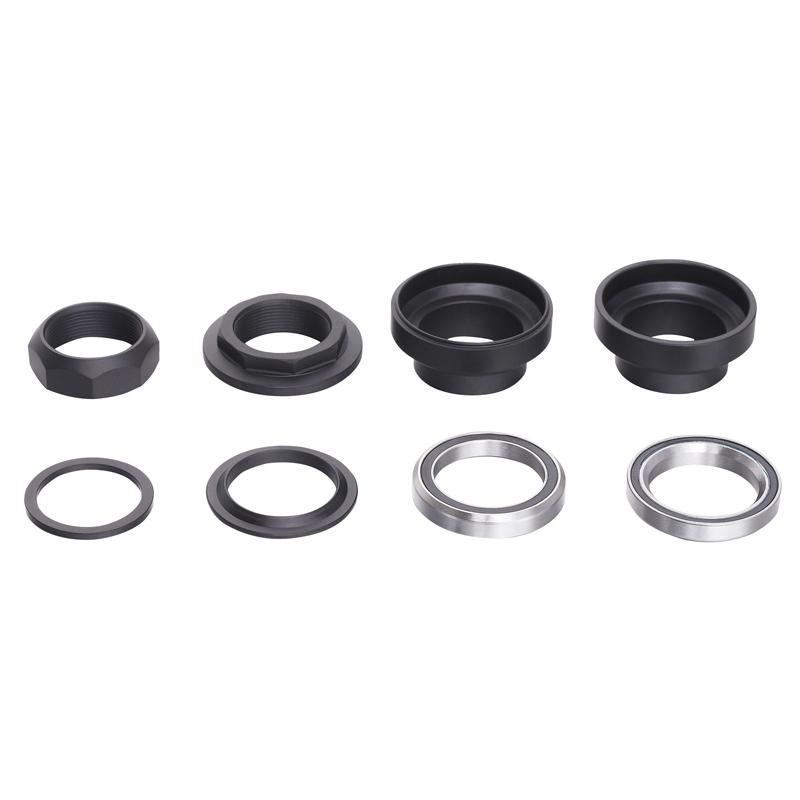

| NO | PART NAME | MATERIAL | SPECIFICATION | Q'TY |
| 1 | Lock Nut | Alloy 6061 | 1'' X 24T | 1 |
| 2 | Washer | Steel | 2mm | 1 |
| 3 | Top Cone | Alloy 6061 | 1'' X 24T | 1 |
| 4 | Bearing | G-Cr15 | OD38mm X 45° X 6.5H | 2 |
| 5 | Top Cup | Alloy 6061 | Ø30mm | 1 |
| 6 | Lower Cup | Alloy 6061 | Ø30mm | 1 |
| 7 | Lower Cone | Alloy 6061 | Ø27mm | 1 |
